Product description
Extremely rigid and fast, 45-minute assembly
Beautifully designed and extremely adjustable
Optional Integrated Single and Triple Monitor Stand
Includes Seat Slider Rails, Oversized Seat Brackets, Gear Shifter mount and more
Sliding adjustment on the Wheel Mount
Small foot-print to fit well in most small spaces
Flight Simulator Expandable
Beautifully designed and extremely adjustable
Optional Integrated Single and Triple Monitor Stand
Includes Seat Slider Rails, Oversized Seat Brackets, Gear Shifter mount and more
Sliding adjustment on the Wheel Mount
Small foot-print to fit well in most small spaces
Flight Simulator Expandable
Designed and engineered in Australia
Trak Racer are proud partners of Alpine F1 team and Airbus Aircraft
Description

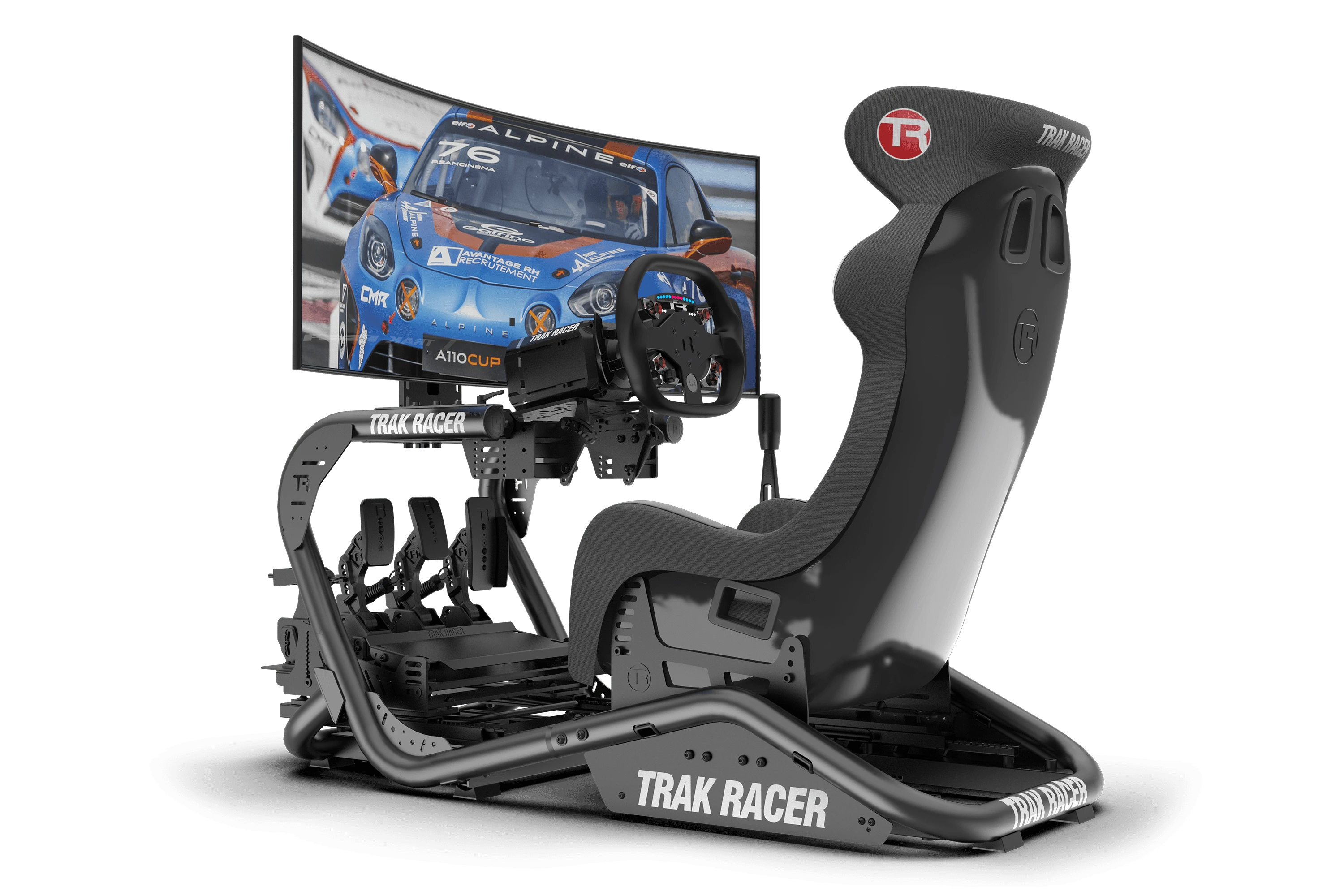

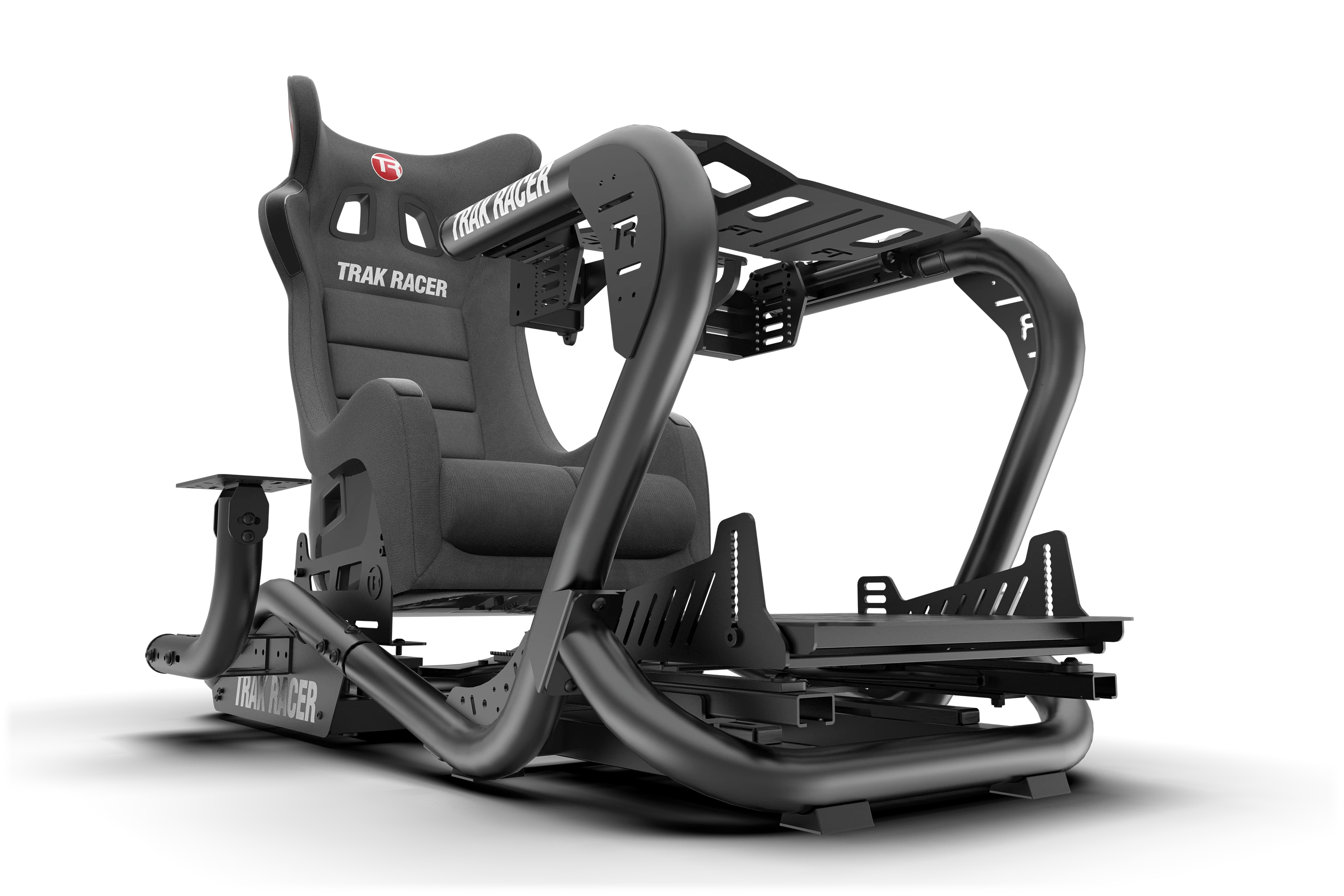

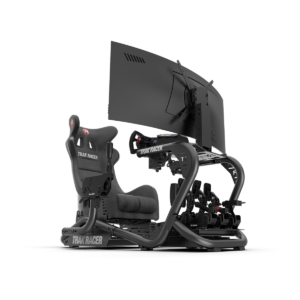

Trak Racer TR8 Pro Racing Cockpit
The TR8 Pro is an upgraded version of the popular Trak Racer TR8. From 2018 to 2021, the TR8 was the King of Sims. It ticks all of the boxes for a Sim Rig that assembles in 30-60 minutes. It’s Strong, Adjustable, and has an Integrated Monitor Stand. In the usual Trak Racer way, we gathered customer feedback from over 10,000 TR8 owners to develop the TR8 Pro .
The Trak Racer TR8 PRO Racing SimulatorTrak Racer
Trak Racer
Choose your Configuration
By gathering feedback since 2008, Trak Racer is able to offer as much, or as little as you need. Start small or go „all-out“ from the beginning – we’ve got your back.
Bring Your Own Seat
The TR8 Pro includes Seat Brackets to suit most fiberglass bucket seats. We also offer optional seat brackets for office chairs, vehicle-style recline seats.
Add a Trak Racer Seat
The TR8 Pro includes Seat Brackets to suit most fiberglass bucket seats. We also offer optional seat brackets for office chairs, vehicle-style recline seats.
Add a Monitor Stand
The TR8 Pro is rigid and ready for either an Integrated Monitor Stand or of course, a freestanding Monitor Stand. Get full immersion with a Genuine Trak Racer monitor stand.
Trak Racer TR8 Pro Improvements
Your Feedback Is Our Creation

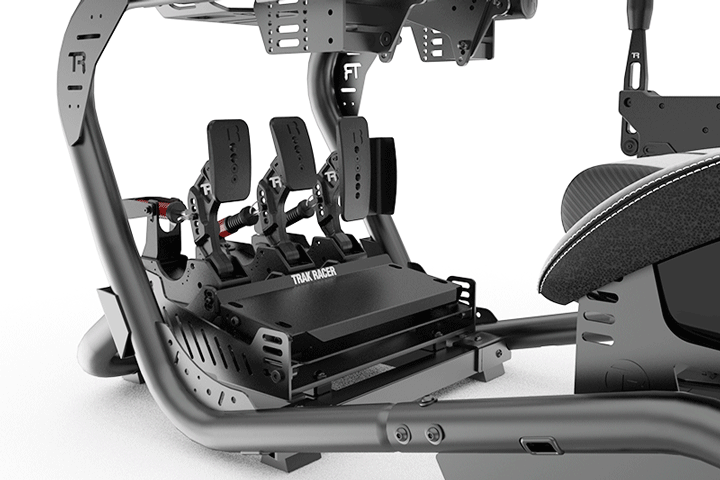

Strengthened Pedal Plate
The TR8 Pro has been improved to withstand up to 180kgs of braking for force without flex. We have also added pre-drilled mounting points for more new pedal sets on the market.

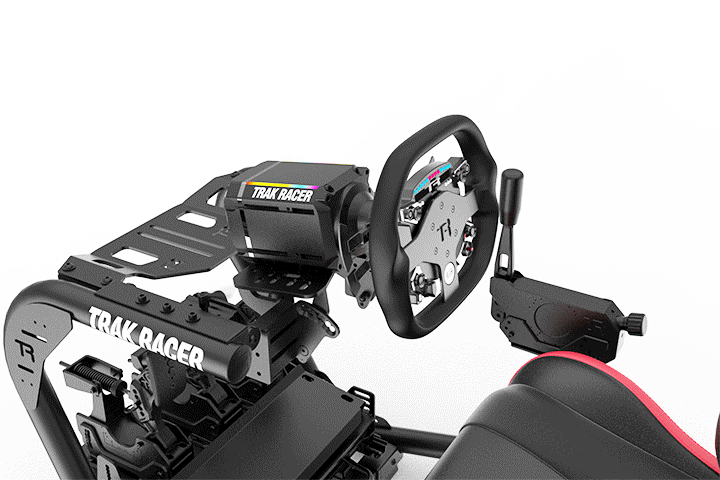

More Adjustable and Strengthened Wheel Mount
We have added a wheel mount slider to the TR8 Pro to give you 130mm forward and back adjustment with the use of proprietary ball-bearing-assisted sliders. We have
also strengthened the 2″ tube to withstand up to 30nm direct drive steering wheel torque without flex.

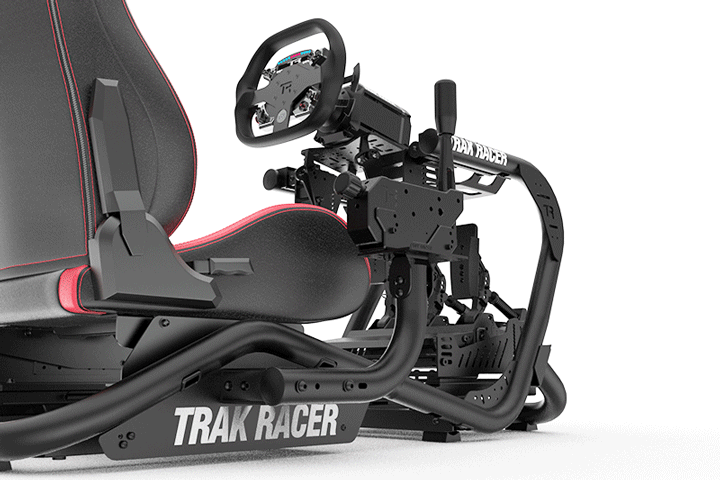

More Adjustable and Strengthened Left or Right Side Shifter Mount
The shifter mount has been strengthened by increasing the thickness of the mount and also the plate on the simulator that it mounts to. We have even added mounting points to enable the shifter mount to move forwards and back.

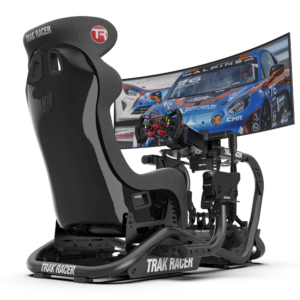

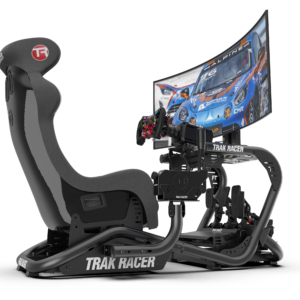

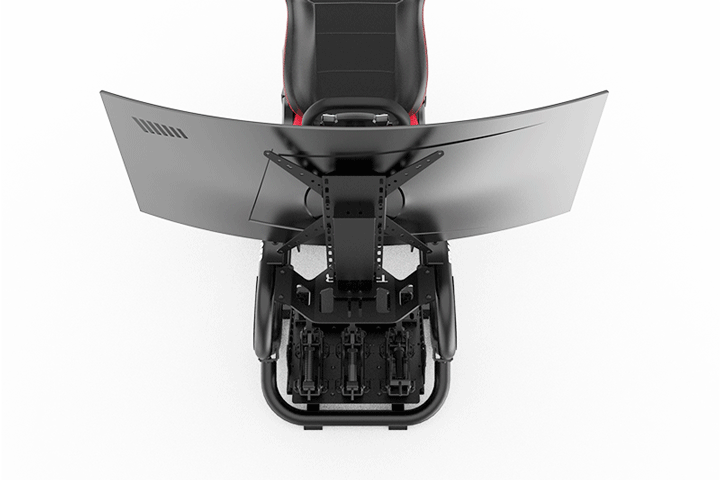

OPTIONAL INTEGRATED SINGLE MONITOR STAND
The integrated monitor stand is an optional extra with height adjustment for the monitor, and also forward and back adjustment. The complete design has been improved to provide a more rock-solid mount.
Integrated Triple Stand and Quad Stand also available.
Trak Racer TR8 Pro Overview
- Direct Drive & Belt Drive Wheel Ready!
- Compatible with PC and Console
- Compatible with all popular steering wheels, pedals and shifters on the market
- Stiffened Dual-Supported NO FLEX Wheel Shaft
- Optional Integrated Single Monitor Stand to support displays up to 70” (Triple Display Stand Optional)
- Patented 3-Point adjustable steering wheel mount with slide
- Superior build quality, stability and comfort
- Strengthened Left and Right-Side Gear Shift mount with pre-drilled mounting points and slide
- Reinforced Angle and Distance Adjustable Pedal Mount, suitable for all the big brands!
- Designed and Engineered in Australia

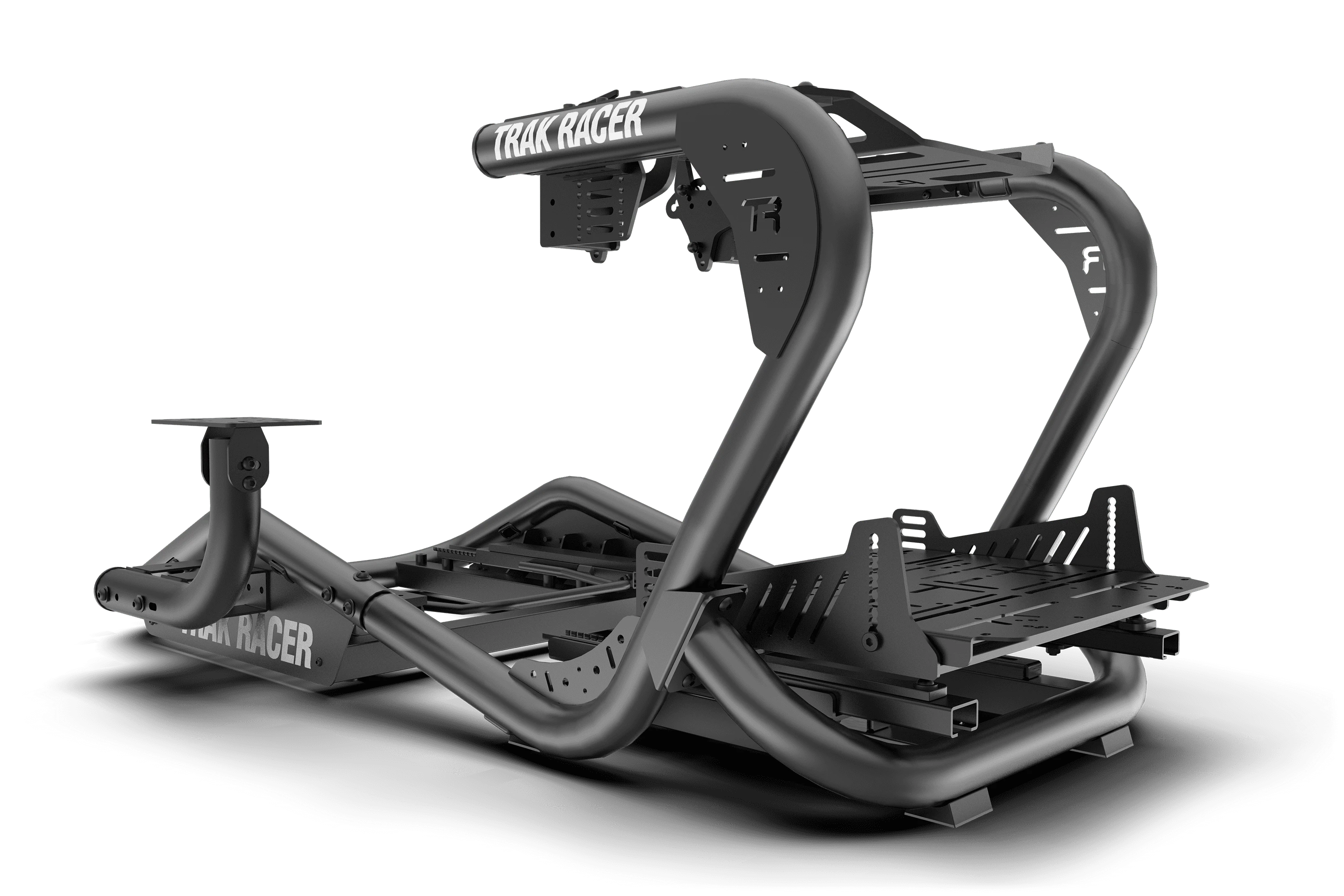

Frame/Chassis Features
- Solid framework with no obstruction between your legs and no wheel side supports required
- 580mm wide for firm stance when racing
- Low ground clearance with hard wood rubber floor protectors
- Finished in 2″(51mm) high-grade steel tubing
Optional Integrated Single Monitor Stand Features
- Adjustable Design allows you to move forward, back and up/down
- VESA Mounting Bracket for 75mm and 100mm (200mm/300mm/400mm)
- Also Available – Triple Monitor Mount and Quad Monitor Mount
Adjustable Wheel Mount Features
- Solid construction
- Pre-drilled mounting points for all major brand wheels
- 3-Point Adjustment allows you to adjust the height and angle of the mount
- Patent design
- Adjustable Pedal Mount Features
- Fully adjustable bracket for both angle slide
- Welded steel frame on the underside of the mount for added strength
- Pre-drilled mounting points for all major brand pedals
Reinforced Left or Right-Side Mounting Gear Shift Mount Features
- The Distance Slider mount allows you to adjust the position of the mount to the most ergonomic position for you
- Angle Adjustment enabled you to face the shift mount inwards, flat and outwards for customised adjustability
- Pre-drilled mounting points for all major brand shifters including Thrustmaster TSS, Fanatec Clubsport and more
- Optional – Integrated Handbrake Mount (SKU Right Side TR-HB-R and Left Side TR-HB-L)

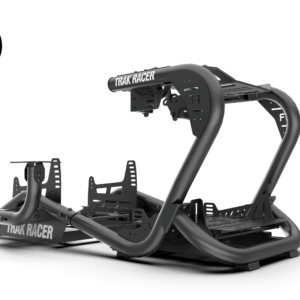

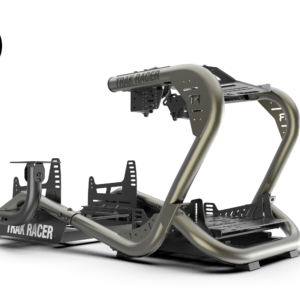

What’s Included
- 2″ Industrial Strength Iron Chassis
- Fully Adjustable Angle Pedal Mount
- Premium Seat Sliders
- Left/Right Mounting Gear Shifter
- Angle, Slide and Height Adjustable Wheel Mount
- Tools and screws included
- Assembly Instructions

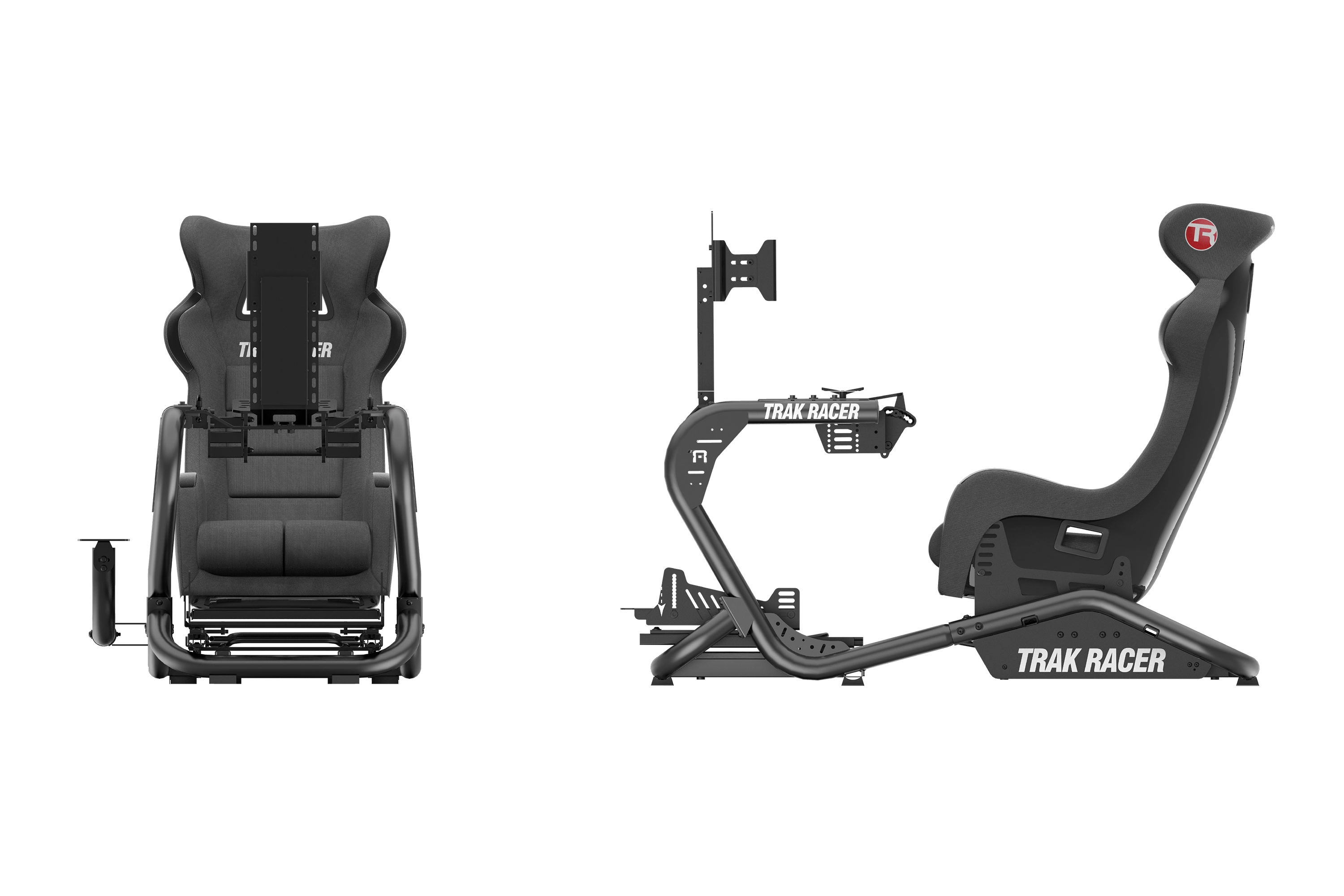

Product Dimensions
OPTIONAL EXTRAS
SEE MORE IN ACCESSORIES!

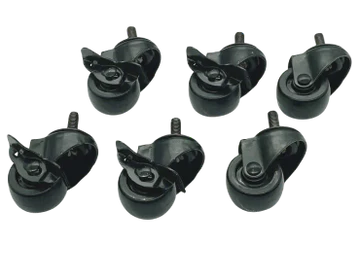

Caster Wheels with Brake
Sim Rig Mat with RGB Light

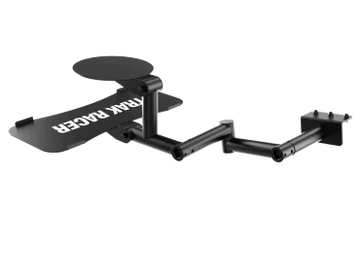

Keyboard & Mouse Mount

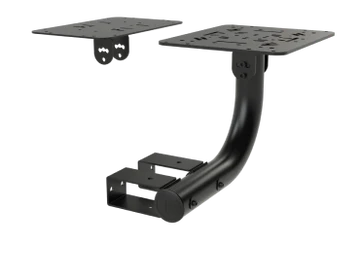

Flight Sim Control Mounts

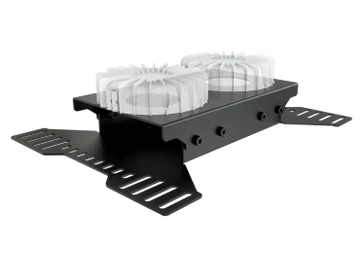

UNIVERSAL BASS SHAKER/TACTILE RIG MOUNT

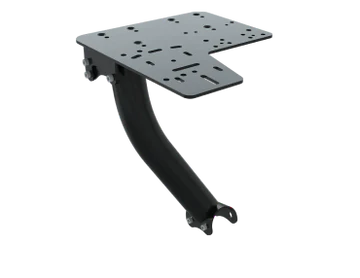

SHIFTER AND HANDBRAKE COMBO MOUNT
Mount Compatibility
FRONT DIRECT DRIVE MOUNT COMPATIBILITY
- Trak Racer Direct Drive (All variants) Wheelbase
- AccuForce V1/V2 (Turn the top cover around to fit)
- Bodnar 53 series
- Fanatec Podium DD (Installs without front plate)
- Lenze MCS12 series
- Immsource ET3 and ET5
- Kollmorgen AKM 52-53-54 (OSW and Leo Bodnar Simsteering systems)
- MiGe 130ST (Small and big)
- Ricmotech Mini-Mite Direct-Drive Steering System Base
- Simucube SC1 / SC2 Sport, Pro, Ultimate
- Simucube SC3 Sport, Pro & Ultimate
- Simagic Alpha / Alpha Mini/ Ultimate
- VRS Force Pro
STEERING WHEELBASE DECK COMPATIBILITY
- Trak Racer Direct Drive (All variants) Wheelbase
- Asetek La Prima, Forte, Invicta & Initium wheel bases (With Adaptor: TR-APDD)
- AccuForce V1/V2
- Conspit Ares 12nm & Ares Platinum 20nm
- Fanatec Elite, Clubsport, Clubsport DD, Clubsport DD+, Podium DD, Podium DD1/DD2, CSL DD, Fanatec GT DD Pro and CSL Elite
- Logitech G25, G27, G29, G920, G923, Logitech G PRO & RS50 Base.
- Moza R3, R5, R9, R12, R16, R21 DD Wheel Base including updates. (The updated R9, R12 and R16 can be front mounted with additional hardware).
- MOZA R21 Ultra & R25 Ultra (Can also be front mounted with additional mounting brackets)
- Nacon REVOSIM RS Pure (2025)
- PXN VD4 / VD6 / VD10, V12, V12 Pro (2025)
- SIMAGIC Alpha EVO, EVO Sport & EVO Pro (Side mounting with Simagic side mounting kit)
- Simagic Alpha Mini DD, Alpha DD, Alpha Ultimate Direct Drive
- Thermaltake G6 Direct Drive Wheelbase
- Turtle Beach Velocity One Race
- Thrustmaster T500, T300, T150, TC-PS, TS-XW, TX, 248, T-GT, T80, TMX and T-GT II, T598 & T818 with a Thrustmaster Adaptor
- VNM DD Bases Elite 18 Nm, Supreme 25 nm, VNM DD Xtreme 32 Nm
OTHER WHEEL BASES – Requires optional bracket (Trak Racer Direct Drive Mount)
- Trak Racer Direct Drive (All variants) Wheelbase
- AccuForce V1/V2 (Turn the top cover around to fit)
- Bodnar 53 series
- Fanatec Podium DD (Installs without front plate)
- Immsource ET3 and ET5
- Kollmorgen AKM 52-53-54 (OSW and Leo Bodnar Simsteering systems)
- Lenze MCS12 series
- MiGe 130ST (Small and big)
- Ricmotech Mini-Mite Direct-Drive Steering System Base
- Simucube SC1 / SC2 Sport, Pro, Ultimate
- Simucube SC3 Sport, Pro & Ultimate
- Simagic Alpha / Alpha Mini / Ultimate
- VRS Force Pro, DFP20, DFP15 wheelbases
ASETEK FRONT MOUNT COMPATIBILITY (TR-DDBRASET)
- Invicta 27nm Wheelbase
- Forte 18nm Wheelbase
- La Prima 12nm Wheelbase
DIRECT DRIVE SIDE MOUNT FOR FANATEC COMPATIBILITY
- Fanatec Podium DD, DD1/DD2 (Requires 2 x 5 mm spacer plates)
- Fanatec GT DD Pro (Requires 4 x 5 mm spacer plates)
- Fanatec CSL DD (Requires 4 x 5 mm spacer plates)
- Clubsport DD, Clubsport DD+ (Requires 4 x 5 mm spacer plates)
PEDAL DECK COMPATIBILITY
- Asetek La Prima, Forte, Invicta, Invicta T.H.O.R.P. II & Initium pedals
- AW Prime Pedals Set
- BJ Sim Racing Steel Series, 1000psi Hydraulic
- Cammus LC100 Pedals (2024)
- Conspit CPP & CPP.LITE Pedals
- Cube Controls Hydraulic SP01
- DC Sim Racing DC3
- Fanatec CSL Elite Pedals, ClubSport V1/V2/V3 (Including Inverted Pedals)
- Ghost Sim Racing Phantom-PRO Pedals (2023 – 25)
- HPP PRX 3P, JBV 2/3 Pedal System
- Heusinkveld Ultimate/Ultimate+, Sprint and Pro
- JCL Hydraulic Pedals
- Logitech G25, G27, G29, G920, G923, G Pro pedals
- Meca Cup 1-2, Meca Cup1-3, Clutch and Base Plate, Meca Cup 1 Evo Hydraulic & LC
- Moza CRP, SRP Pedal set with and without SRP plate & Moza Booster ActivePedal
- OBP Pro Race V2 Sim Pedal System
- Protosimtech PT2
- Quaife Throttle Pedal and Brake
- Racewerk S1 Hydraulic Sim Racing Pedals
- Ricmotech RealGear GTPRO3 Pedals
- SRP GT/GT-R/Formula/Formula-R
- Simagic P2000, P1000 (All variants) & P500 Pedals
- Simucube Co-Pedal 2-in-1 Passive Throttle / Clutch Pedal & ActivePedal
- Simworx Pro Series
- Simgrade pedal plate and VX PEDAL
- Sim Coaches P1-3
- Simtrecs ProPedal GT (2023)
- SimJack Pro Pedals, SimJack Ultimate UT Pedals
- Simforge Mark-2 Pedals, Simforge Mark-1
- Sim-Lab XP1 Pedals (2024)
- Simtag PT-1 Modular Pedals
- Trak Racer Loadcell Pro Pedals
- Thera Pedals
- Turtle Beach Velocity One Race pedals
- Thrustmaster T-LCM, T3PA, GT Ed, T3PGT, T3PA PRO add-on and T500, T150 pedals
- Velazquez Engineering PRO+ Hydraulic
- Venym ATRAX Black Pedals (2024)
- VRS DirectForce Pro Pedals
- VNM V1 Pedals
- Wave Impetus
- XP1 Loadcell Pedal Set
- 3DRAP Ngasa
SHIFTER MOUNT COMPATIBILTY
- Trak Racer Sequential Shifter Pro
- Asetek Forte S-Series Shifter (2022)
- Aiologs SQ Shifter
- BJ Sim Racing Shifter 3.0
- BDH Race Sim Hardware H1SQ & H2SQ
- DSD SQ Shifter
- Fanatec ClubSport Shifter, SQ
- Frex H Pattern
- Heusinkveld SQ Shifter
- Jinx Shifter – Additional mount required (TR80-BIGSHIF)
- Logitech RS Shifter & G-Shifter
- MOZA HGP Shifter, SGP Sequential Shifter & the AB9 FFB Shifter
- MME Motorsport Sequential Shifter (Indie, 2023 – 25)
- Meca Cup Shifter
- PRO-SIM, PRO-SIM LITE & PRO-SIM SEQUENTIAL
- Quaife PSL Sequential V2, Sequential, and H Pattern – Additional mount required (TR80-BIGSHIF)
- Simworx Pro Series – Additional mount required (TR80-BIGSHIF)
- SIMAGIC DS-8X H-Pattern, Q1S & TB-1 Shifters
- SIMAGIC Q1S Sequential Shifter (2024)
- Sim-Lab SQ1 Sequential Shifter (2023/24)
- SimJack Sequential Shifter
- Thrustmaster TH8A, TSS-PRO, RSTSS, TSS+
- Turtle Beach VelocityOne Multi-Shift Shifter & Handbrake
- Venym ATRAX Black Sequential Shifter
- VNM Simulation Sequential Shifter
OPTIONAL HANDBRAKE MOUNT COMPATIBILITY
- Trak Racer Loadcell Pro Handbrake
- Asetek SimSports – Forte Handbrake (2023)
- Aiologs Handbrake (2022)
- BJ Sim Racing – Handbrake 2.0 (2024)
- Conspit – H3 Dual-mode Hydraulic Handbrake (2024)
- DSD Hydralulic Handbrake
- Fanatec Clubsport Handbrake (V1/V2)
- Ghost Sim Racing – Handbrake (2023 – 25)
- Heusinkveld Handbrake
- Moza Racing – HBP Handbrake (2023)
- Meca Handbrake
- Prosim Handbrake Digital/RX Analog
- Quaife Handbrake
- RealGear RALLYpro Handbrake
- Sim-Lab – XB-1 Handbrake (2023)
- Simworx Pro Series Handbrake
- SimJack – Handbrake (2024)
- Simagic TB-1 Handbrake, Simagic – TB-RS Hydraulic Handbrake
- Thrustmaster TSS+
- Turtle Beach VelocityOne Multi-Shift Shifter & Handbrake
- Venym – ATRAX Black Handbrake
- VNM Simulation – VNM Handbrake V1.5
FLIGHT – RUDDER COMPATIBILITY
- Thrustmaster TPR: Thrustmaster Pendular Rudder
- Thrustmaster T.Flight Rudder Pedals
- Logitech Flight Rudder Pedals
- Logitech Heavy Equipment
- Virpil Ace
- Flight Sim Rudder Pedals – RUDDO+ (2 holes only on pedal pre-drilled plate)
FLIGHT – YOKE COMPATIBILITY
- Flight Sim Yoke – Yoko Neo
- Logitech Flight Yoke System (By clamp)
- Logitech Flight Switch/Multi/Instrument Panels
- Logitech Heavy Equipment
- Turtle Beach Velocity One Flight
- Brunner Yoke CLS-E MK-II
What’s Included
2″ Industrial Strength Iron Chassis
Fully Adjustable Angle Pedal Mount
Premium Seat Sliders
Left/Right Mounting Gear Shifter
Angle, Slide, and Height Adjustable Wheel Mount
Bucket Seat Mounting Brackets
Tools and screws included
*Electronics, Seat and Monitor Stand are not included
Compare rigs
RACING SIMULATOR COMPARISON CHART
| FEATURES |
FS3 V2 |
TR40S |
RS6 |
TR80S |
TR8 PRO |
TR160 |
TR120S |
TR160S |
ALPINE TRX |
|---|---|---|---|---|---|---|---|---|---|
| ALPINE F1 TEAM APPROVED | No | No | No | No | Yes | No | No | No | Yes |
| FRAME TYPE | High grade steel | Base: 40 × 40mm aluminium extruded profile Uprights: 80 × 40mm aluminium extruded profile | 2″ tubular profile | 80×40mm aluminium extruded profile | 2″ tubular profile | 160×40mm aluminium extruded profile | 120×40mm aluminium extruded profile | 160×40mm aluminium extruded profile | 2″ tubular profile |
| RECOMMENDED WHEELBASE TORQUE | 0 to 5Nm | 0 to 10Nm | 0 to 8Nm | 0 to 16Nm | 0 to 25Nm | 0 to 30Nm+ | 0 to 30Nm+ | 0 to 30Nm+ | 0 to 30Nm+ |
| ASSEMBLED DIMENSIONS (WIDTH x LENGTH) | 584mm×895mm | 660mm×1200mm | 540mm×1185mm | 660mm×1200mm | 600mm×1300mm | 660mm×1445mm | 660mm×1445mm | 660mm×1445mm | 620mm×1507mm |
| WEIGHT | 18kg (40lbs) | 24.8kg (54.7lbs) | 38kg (83lbs) | 32kg (70.5lbs) | 51kg (112lbs) | 41kg (90.4lbs) | 37kg (81.6lbs) | 42.1kg (92.1lbs) | 89kg (196lbs) |
| WHEELBASE MOUNT OPTIONS | Wheel plate | Wheel plate | Wheel plate | Wheel plate | Wheel plate | 1. Wheel plate 2. Fanatec DD side mount 3. Universal front mount 4. Asetek front mount |
1. Wheel plate 2. Fanatec DD side mount 3. Universal front mount 4. Asetek front mount |
1. Wheel plate 2. Fanatec DD side mount 3. Universal front mount 4. Asetek front mount |
1. Wheel plate 2. Fanatec DD side mount 3. Universal front mount 4. Asetek front mount |
| PEDAL MOUNT OPTIONS | Steel plate | Steel plates (split) | Steel plate | Steel plates (split) | Steel plate | Steel plate Aluminium with heel plate Hybrid Formula/GT |
Steel plate Aluminium with heel plate Hybrid Formula/GT |
Steel plate Aluminium with heel plate Hybrid Formula/GT |
Steel plate |
| PEDAL TRAY ADJUSTABILITY | Low | Low | Low to medium | High | Low to medium | Medium to high | Medium to high | Medium to high | High |
| FORMULA/GT HYBRID PEDAL SYSTEM | No | No | No | Yes | No | Optional | Optional | Optional | Yes |
| GEAR SHIFT MOUNT | Included | Optional | Included | Optional | Included | Included | Optional | Optional | Optional |
| SEAT SLIDER RAILS | Not applicable | Optional | Included | Optional | Included | Included | Included | Included | Included |
| INTEGRATED MONITOR STAND COMPATIBILITY | Not applicable | Optional Single up to 80″ Triple up to 32″ Excluding quad |
Not applicable | Optional Single up to 80″ Triple up to 32″ Excluding quad |
Optional Single up to 70″ |
Optional Single up to 80″ Triple up to 45″ Including quad |
Optional Single up to 80″ Triple up to 45″ Including quad |
Optional Single up to 80″ Triple up to 45″ Including quad |
Optional Single up to 70″ |
| MOTION-READY | No | Yes Motion base required |
Yes Motion base required |
Yes Motion base required |
Yes Motion base required |
Yes Direct-fit No base required |
Yes Direct-fit No base required |
Yes Direct-fit No base required |
Yes Motion base required |
| APPROXIMATE ASSEMBLY TIME | 1 hour | 7+ hours | 1 hour | 7+ hours | 1 hour | 7+ hours | 7+ hours | 7+ hours | 2 hours |
| ADJUSTMENT TIME BETWEEN FORMULA AND GT DRIVING POSITIONS | Not applicable | Not applicable | Not applicable | 30 minutes | Not applicable | 30 minutes Requires TR Hybrid Pedal System |
30 minutes Requires TR Hybrid Pedal System |
30 minutes Requires TR Hybrid Pedal System |
3 – 5 minutes |
| OVERALL COMMENT | A great entry-level wheel stand to give you a taste for sim racing, flight sim, or for those who have limited space. |
Exceptionally priced entry-level rig that will handle most belt-driven and direct drive wheel bases (up to 8Nm) |
A simple-to-assemble entry level cockpit, with easy access and enough strength to handle most wheel bases and pedals without flex. |
A great cockpit that offers huge adjustment in the pedal mount. | Fast and easy assembly. Rigid enough to handle direct drive wheel bases up to 25Nm without flex. The quick-slide wheel mount and option for integrated monitor stand make the TR8 pro a stand-out rig. |
The most rigid rig on the market with double-walled aluminum extrusion and heavier duty brackets and mounts. |
Unique in it’s design and setting a new standard for extrusion-style cockpits. The TR120S is a full-sized rig with endless adjustment. Includes the TR-One wheel mounting system. |
The next size up from the TR120S, the TR160S is unique in its design. Includes the TR-One wheel mounting system. |
Co-developed with Alpine F1 Team Engineers, the Alpine Racing TRX is a huge advancement in cockpits for its quick adjustments and rigidity |
Assembly
