3DOF Motion Set – QS-210/QS-220

Informace

Active Degrees of Freedom

The foundation of 3DOF motion feedback.

Pitch red

Pitch

Forward/backward tilt

Roll red

Roll

Side-to-side tilt

Heave red

Heave

Vertical up/down

What’s in the boX

Qs 3dof

4x actuators
with brackets

Powercabinets

2x Power Cabinets

Qs mc6

1x M10 Controller

Qs motionlock

1x Motion-Lock Switch

Qubic Manager

Qubic Manager Software

qs banner
purchase?
FIND DISTRIBUTOR
looking for
FIND DISTRIBUTOR

window.SR7 ??={};SR7.PMH ??={}; SR7.PMH[„SR7_69_5″] = {cn:100,state:false,fn: function() { if (window._tpt!==undefined && window._tpt.prepareModuleHeight !== undefined) { _tpt.prepareModuleHeight({id:“SR7_69_5“,el:[200,200,200,220],type:’standard‘,shdw:’0′,gh:[200,200,200,220],gw:[2560,2560,2560,480],vpt:[‚-200px‘],size:{fullWidth:true, fullHeight:false},mh:’0′,onh:0,onw:0,bg:{color:’transparent‘}}); SR7.PMH[„SR7_69_5“].state=true;} else if(SR7.PMH[„SR7_69_5“].cn–>0) setTimeout( SR7.PMH[„SR7_69_5“].fn,19);}};SR7.PMH[„SR7_69_5“ ].fn();

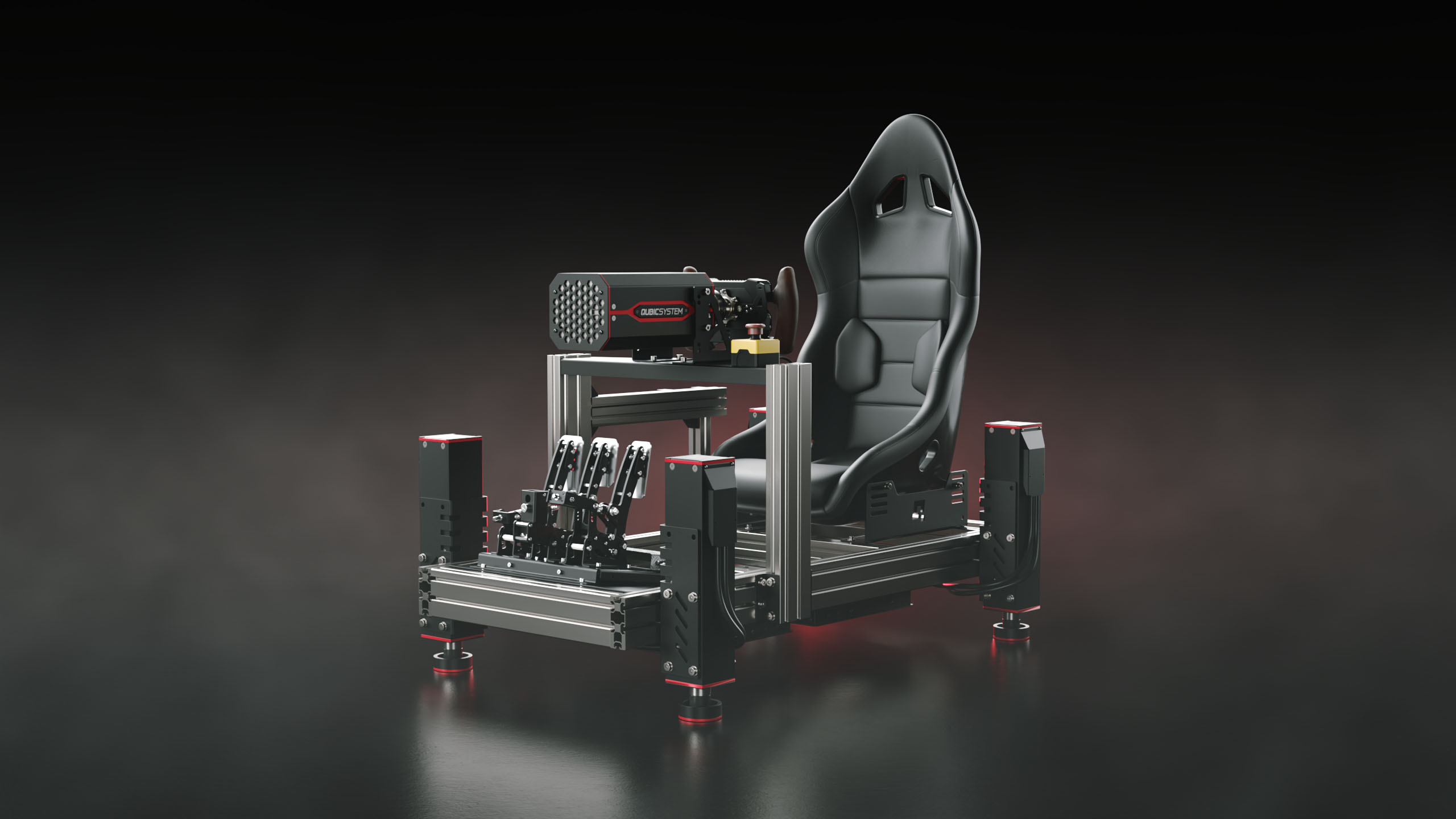

QS-210

3DOF CONFIGURATION

The QS-210 3DOF configuration includes four 60 mm/2.36 in stroke actuators, two power cabinets and one QS-MC6 motion controller. This configuration is designed for simulators who require very realistic and precise feedback. It provides an incredible level of immersion – you can feel exactly how the car reacts in real time.

What to order?

€6,680.00

(tax and duty not incl.)

FIND DISTRIBUTOR
Qs 3dof bundle
Qs 3dof bundle

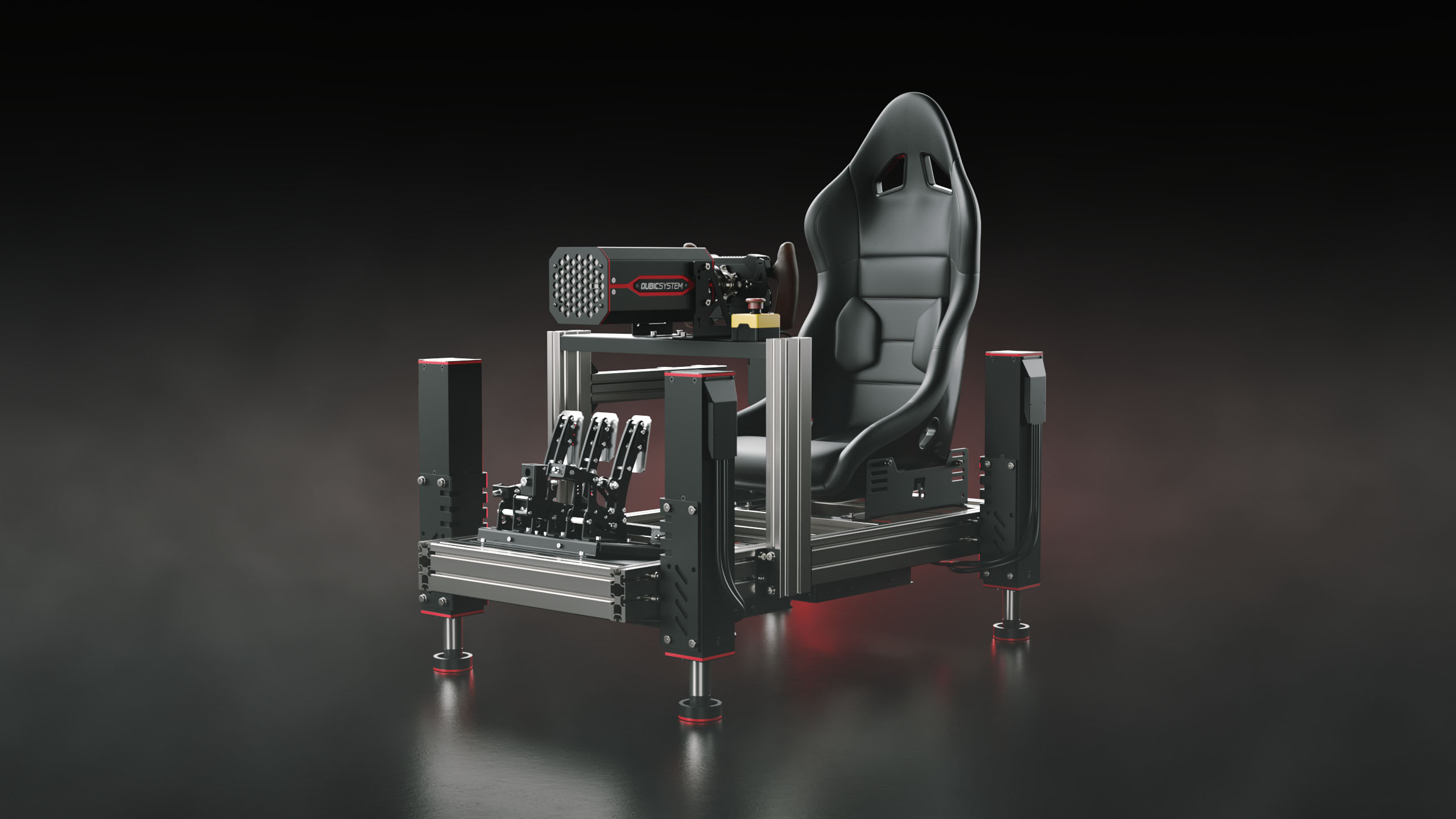

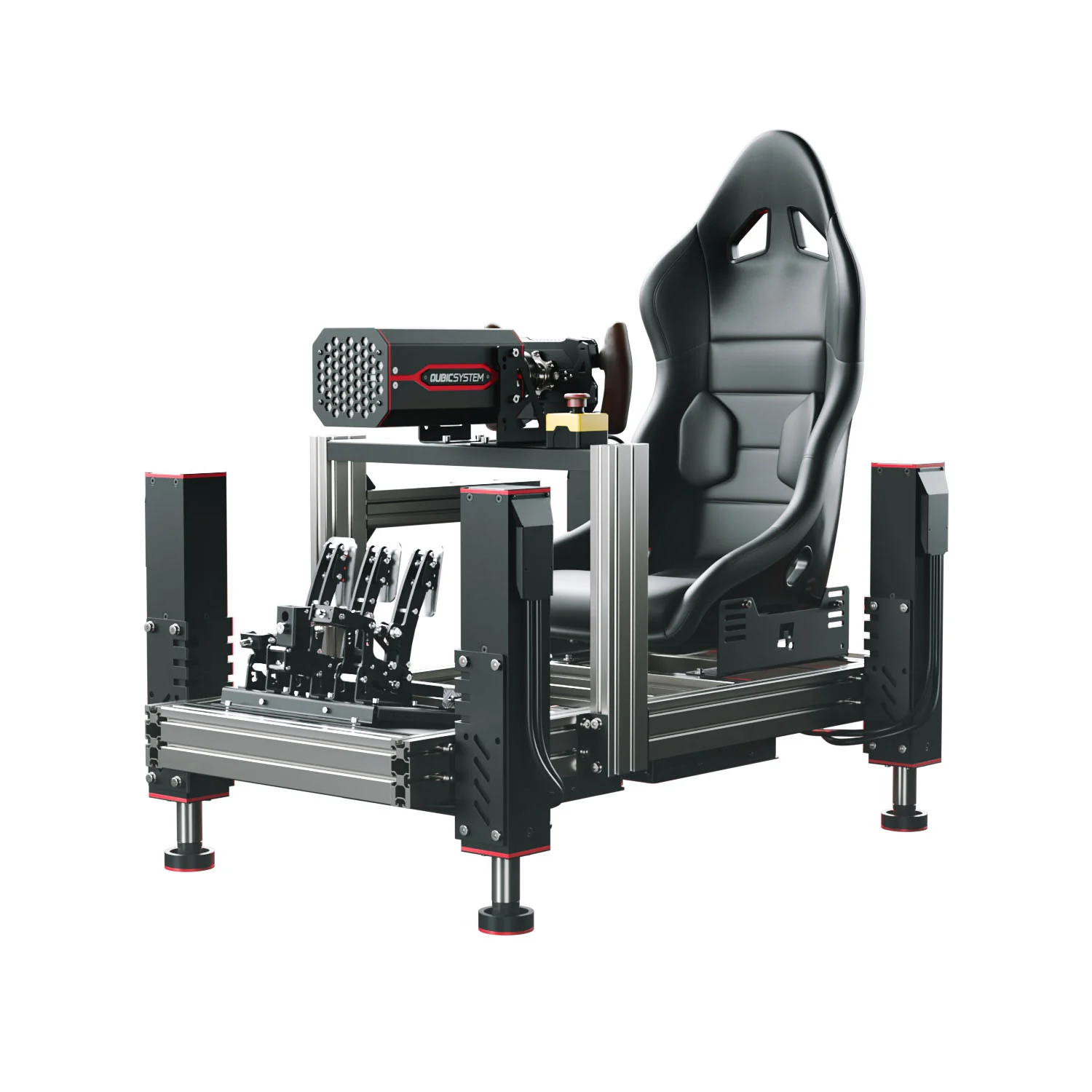

QS-220

3DOF CONFIGURATION

QS-220 3DOF configuration consisting of four actuators with 100mm/3.93 in stroke, two power cabinets and one motion controller. The 3DOF motion system is dedicated to all racers who expect the most realistic and precise simulation. Incredible levels of vehicle feedback to the driver allows feeling exactly what the vehicle is doing in real time.

What to order?

€8,880.00

(tax and duty not incl.)

FIND DISTRIBUTOR

Technical Parameters

Compare performance metrics for QS-210 vs QS-220 Actuators.

Motion platform model
2x QS-210
2x QS-220
Architecture 2 / 2.5 / 3 DOF 2 / 2.5 / 3 DOF
DOF Pitch, Roll, Heave Pitch, Roll, Heave
Max velocity 400 mm/s 800 mm/s
Stroke 60 mm 100 mm
Max acceleration 0.6 G 0.8 G
Payload 250 kg 350 kg (Heavy-Duty mode)
System latency <8 ms <8 ms

Who Is It For

What does 3DOF unlock for your simulation?

Serious Sim Racers

The configuration chosen by competitive drivers and professional training centers. True heave motion transforms how you perceive track surfaces and vehicle behavior.

  • True heave reveals every bump, curb, and kerb strike
  • Feel road surface changes and track elevation
  • Instant feedback on suspension behavior
  • Weight transfer becomes physical, not just visual
  • Develop car control skills faster than visual-only
  • Foundation for QS-CH2 upgrade to 5DOF

Flight Sim Enthusiasts

Experience the vertical dimension of flight. True heave motion makes turbulence, thermals, and touchdowns dramatically more realistic.

  • Feel touchdown impact and runway texture
  • Turbulence becomes a physical experience
  • Thermals and updrafts through heave motion
  • Stall buffet and approach-to-stall warnings
  • Improved spatial awareness during maneuvers
  • Ideal for GA, helicopter, and combat simulation

EXPLORE QS-BT1
Complete with QS-BT1
Add sustained G-Forces directly to your body with the Belt Tensioner.
SMART UPGRADE PATH

window.SR7 ??={};SR7.PMH ??={}; SR7.PMH[„SR7_76_6″] = {cn:100,state:false,fn: function() { if (window._tpt!==undefined && window._tpt.prepareModuleHeight !== undefined) { _tpt.prepareModuleHeight({id:“SR7_76_6“,el:[400,300,300,220],type:’standard‘,shdw:’0′,gh:[400,300,300,220],gw:[2560,1024,778,480],vpt:[‚-200px‘],size:{fullWidth:true, fullHeight:false},mh:’0′,onh:0,onw:0,bg:{color:’transparent‘}}); SR7.PMH[„SR7_76_6“].state=true;} else if(SR7.PMH[„SR7_76_6“].cn–>0) setTimeout( SR7.PMH[„SR7_76_6“].fn,19);}};SR7.PMH[„SR7_76_6“ ].fn();

FAQ

The four-actuator 3DOF design provides independent control of each corner of your seat/platform. This allows true heave motion combined with pitch and roll, whereas a three-actuator design would require compromises in motion quality. The four-point system also provides better stability and smoother motion transitions.

QS-220 offers more stroke (100mm vs 60mm), double the velocity (800mm/s vs 400mm/s). For most users, QS-210 provides excellent performance. QS-220 is for those who want maximum tilt angles and the fastest possible response. You can find a detailed comparison HERE.

Yes, actuator brackets for aluminum rigs as well as flat face profile adapters are included as part of the standard package.

If you have a 3DOF set (4 actuators), you can upgrade to 5DOF by purchasing 2DOF motion platform – QS-CH2. Learn more about this configuration.

We provide 2 years manufacturer warranty for personal use, 1 year for commercial use.
