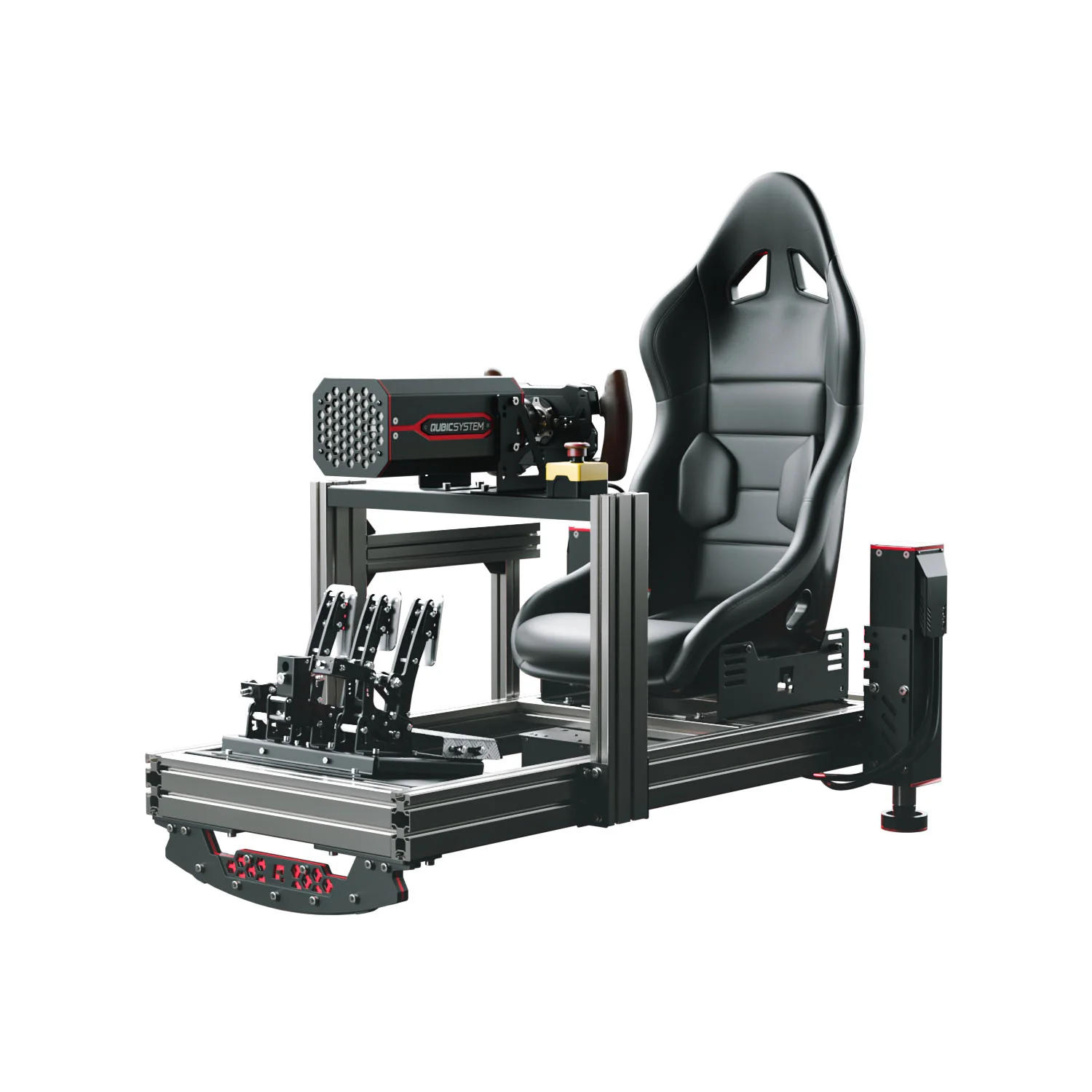

Qs qs pivot bundle product

Informace

2.5 Degrees of Freedom

SIMULATED HEAVE SENSATION

Pitch red

Pitch

Forward/backward tilt

Roll red

Roll

Side-to-side tilt

Heave red

Heave*

Vertical up/down

 *Heave motion pattern combined from pitch axis.

What’s In The BoX

Qs 2dof

2x actuators
with brackets

Powercabinet

1x Power Cabinet

Qs pivot

1x QS-Pivot

Qs mc6

1x M10 Controller

Qs motionlock

1x Motion-Lock Switch

Qubic Manager

Qubic Manager Software

qs banner
purchase?
FIND DISTRIBUTOR
looking for
FIND DISTRIBUTOR

window.SR7 ??={};SR7.PMH ??={}; SR7.PMH[„SR7_69_1″] = {cn:100,state:false,fn: function() { if (window._tpt!==undefined && window._tpt.prepareModuleHeight !== undefined) { _tpt.prepareModuleHeight({id:“SR7_69_1“,el:[200,200,200,220],type:’standard‘,shdw:’0′,gh:[200,200,200,220],gw:[2560,2560,2560,480],vpt:[‚-200px‘],size:{fullWidth:true, fullHeight:false},mh:’0′,onh:0,onw:0,bg:{color:’transparent‘}}); SR7.PMH[„SR7_69_1“].state=true;} else if(SR7.PMH[„SR7_69_1“].cn–>0) setTimeout( SR7.PMH[„SR7_69_1“].fn,19);}};SR7.PMH[„SR7_69_1“ ].fn();

Qs qs pivto bundle

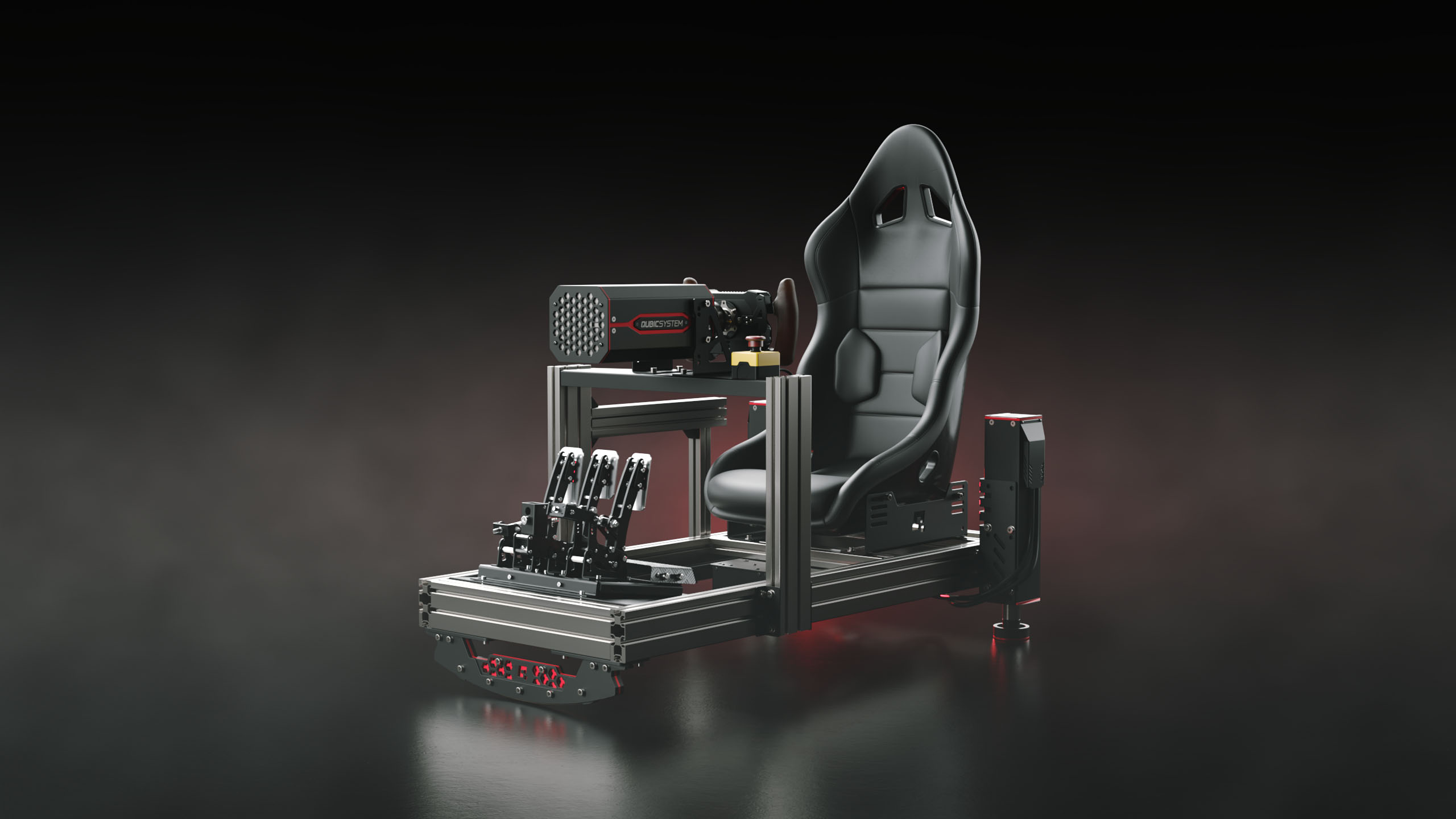

QS-210 SET

2.5 DOF* PIVOT CONFIGURATION

When combined with QS-210 actuators, it creates a unique 2.5 DOF* configuration that delivers full immersion in driving simulation.

* Heave motion pattern combined from pitch axis.

What to order?

€3,865.00

(tax and duty not incl.)

Find distributor

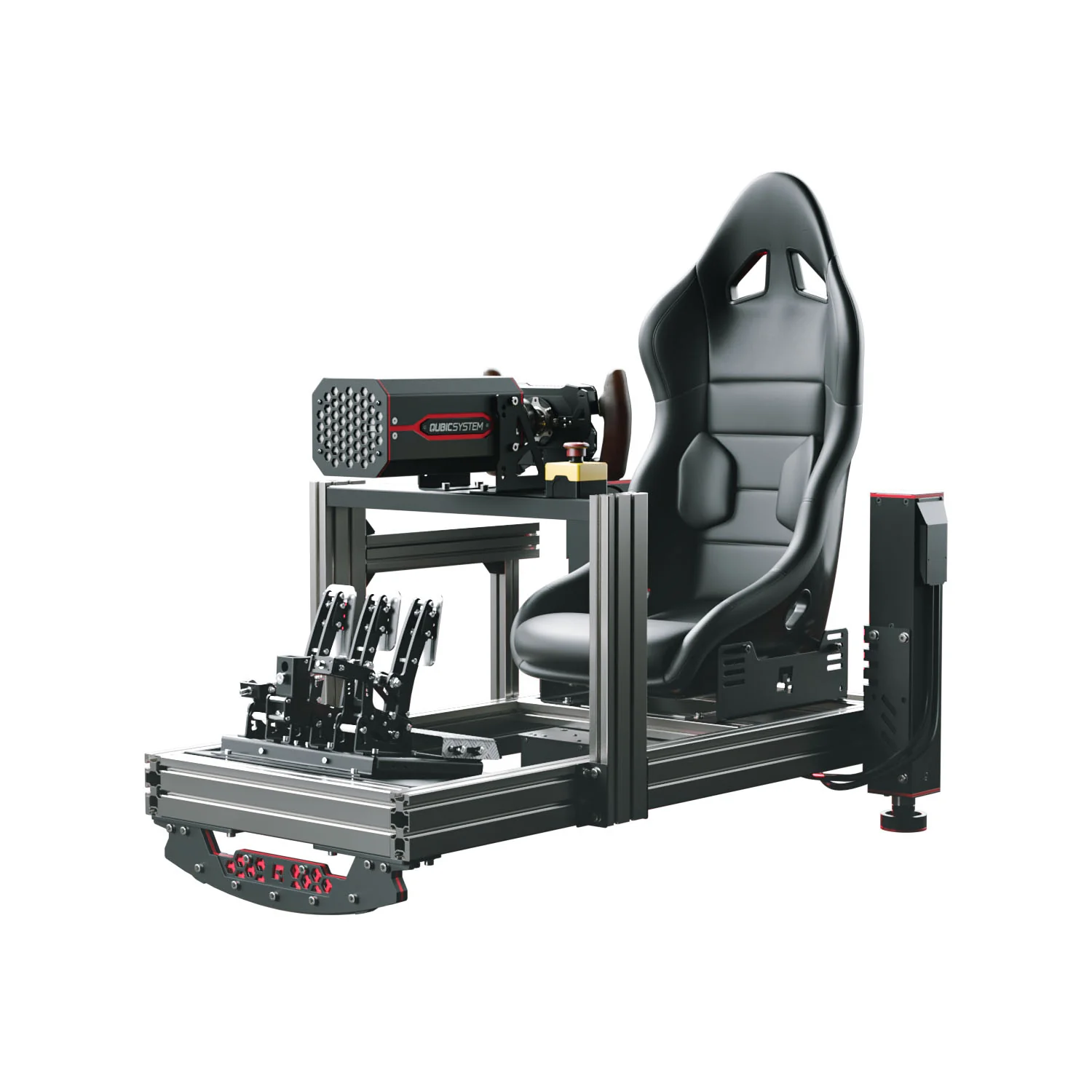

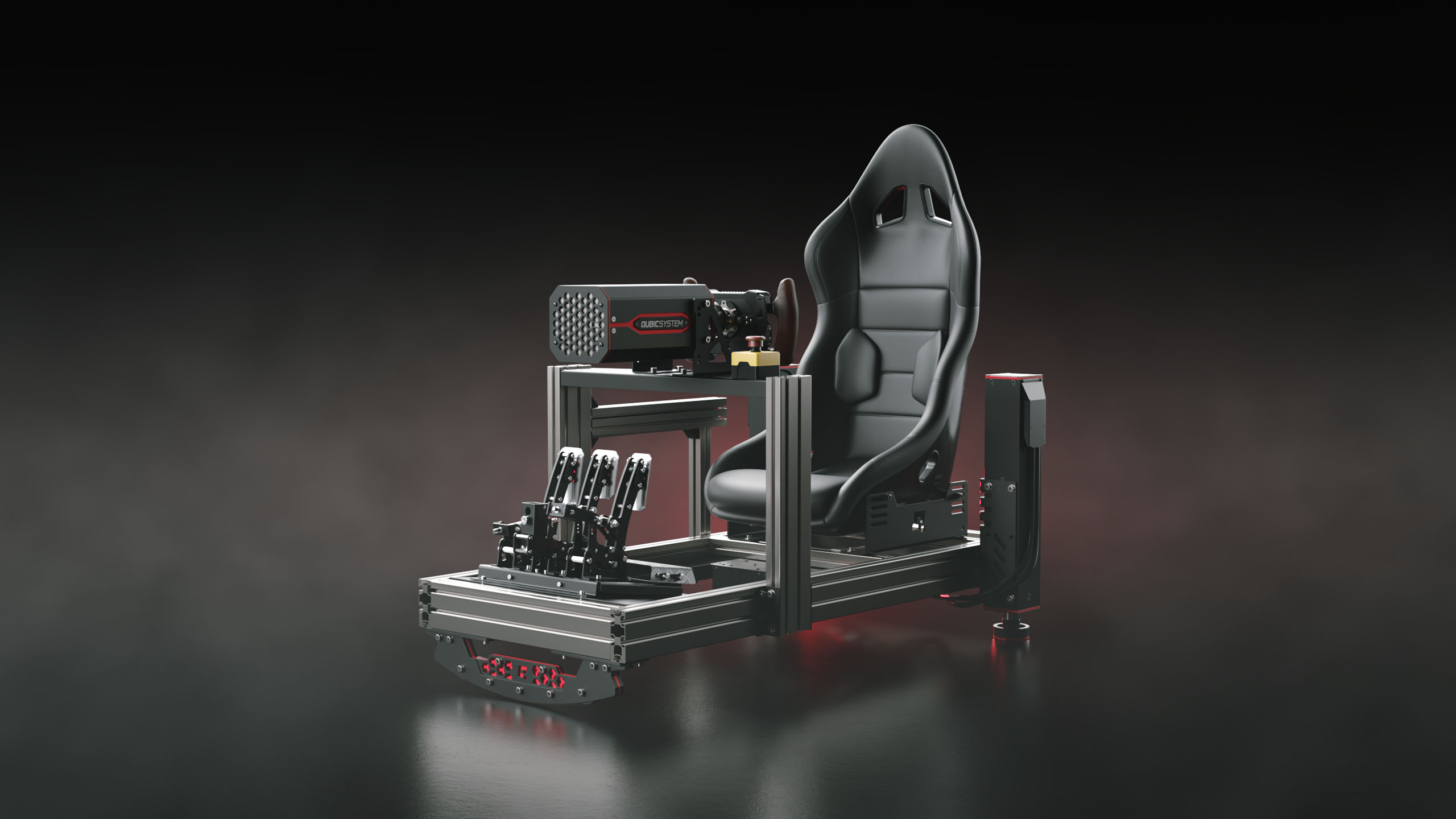

QS-220 SET

2.5 DOF* PIVOT CONFIGURATION

When combined with QS-220 actuators, it creates the same 2.5DOF* motion concept as QS-210, now enhanced by a longer stroke and increased motion range for a more pronounced physical response.

* Heave motion pattern combined from pitch axis.

What to order?

€4,965.00

(tax and duty not incl.)

Find distributor
Qs qs pivto bundle

Who Is It For

What will you get with this 2.5DOF configuration?

Sim Racing Enthusiasts

Get closer to 3DOF experience using only 2 actuators. Thanks to QS-Pivot it creates convincing heave sensation for vertical G-loads and road impacts.

  • Simulated heave enhances curb and bump feedback
  • Full pitch motion for braking and acceleration feel
  • True roll feedback for cornering dynamics
  • Perceive weight transfer almost like 3DOF
  • Cost-effective stepping stone to full 3DOF
  • Upgrade to 3DOF later by adding 2 more actuators

Flight Sim Pilots

Experience takeoff, landing, and turbulence with enhanced realism. The simulated heave adds crucial vertical feedback for aviation.

  • Simulated heave improves touchdown feel
  • Enhanced turbulence and thermal perception
  • Pitch feedback for climb and descent rates
  • Bank and roll for coordinated turns
  • Better stall awareness through combined motion
  • Ideal balance of immersion vs. cost for home cockpits

EXPLORE QS-BT1
Complete with QS-BT1
Add sustained G-Forces directly to your body with the Belt Tensioner.
SMART UPGRADE PATH

window.SR7 ??={};SR7.PMH ??={}; SR7.PMH[„SR7_76_2″] = {cn:100,state:false,fn: function() { if (window._tpt!==undefined && window._tpt.prepareModuleHeight !== undefined) { _tpt.prepareModuleHeight({id:“SR7_76_2“,el:[400,300,300,220],type:’standard‘,shdw:’0′,gh:[400,300,300,220],gw:[2560,1024,778,480],vpt:[‚-200px‘],size:{fullWidth:true, fullHeight:false},mh:’0′,onh:0,onw:0,bg:{color:’transparent‘}}); SR7.PMH[„SR7_76_2“].state=true;} else if(SR7.PMH[„SR7_76_2“].cn–>0) setTimeout( SR7.PMH[„SR7_76_2“].fn,19);}};SR7.PMH[„SR7_76_2“ ].fn();

VIDEO REVIEWS

FAQ

2.5DOF means you get true pitch and roll motion from the two actuators, plus a simulated heave sensation created by the QS-Pivot. The Pivot combines pitch axis motion to create the perception of vertical movement without requiring additional actuators. It’s not true heave, but your body perceives it very similarly.

QS-220 offers more stroke (100mm vs 60mm). If budget allows, QS-220 provides more dynamic motion with larger tilt angles. QS-210 is excellent value and adequate for most users.

Yes! The 2.5DOF set is designed for upgradability. Add a second pair of QS-210 or QS-220 actuators (matching your existing pair) and a second power cabinet to achieve true 3DOF with independent heave motion.

Yes, the QS-MC6 motion controller is required for QS-210 and QS-220 actuators. The controller is included in all 2.5DOF sets.

We provide 2 years manufacturer warranty for personal use, 1 year for commercial use.

Yes, actuator brackets for aluminum rigs as well as flat face profile adapters are included as part of the standard package.
